CNC (Computer Numerical Control) machining is an important automated machining technology in modern manufacturing. Through the computer program to control the movement of the machine tool, CNC machining can achieve high precision, high efficiency and complex shape parts processing. This article will be from the basic concept of CNC machining, working principle, the main advantages and practical applications and other aspects of a detailed introduction.
1.First, the basic concept of CNC machining
CNC machining is a digital control system to automatically control the machine tool technology. Through the pre-written CNC program (such as G code and M code), control the machine tool path, cutting speed and feed and other parameters, to achieve precision machining of metal, plastic, wood and other materials.CNC machine tools include CNC milling machine, CNC lathe, CNC grinder and other types, able to complete a variety of machining tasks, such as cutting, drilling, milling, grinding and so on.
2. Second, the working principle of CNC machining
The working principle of CNC machining can be summarized in the following steps:
2.1. Design and Programming
First, engineers use computer-aided design (CAD) software to create a three-dimensional model of the workpiece. Then, the design model is converted into CNC codes (such as G-code) by computer-aided manufacturing (CAM) software, which contain detailed information such as machining paths and cutting parameters.
2.2. Data transfer

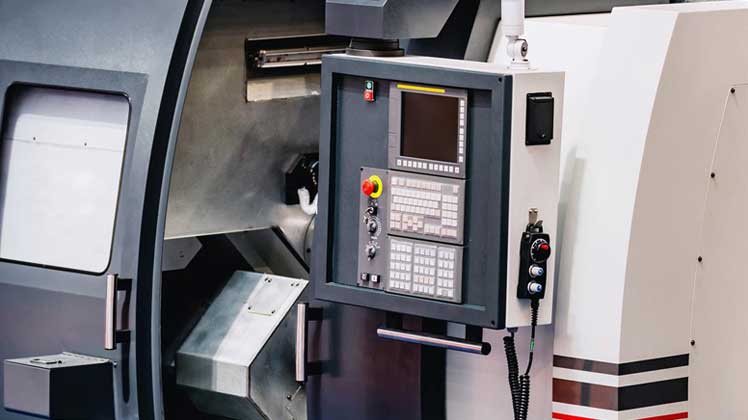

The written CNC program is transferred to the control system of the CNC machine through a data transfer interface (e.g., USB, Ethernet, etc.). The control system reads and interprets the code, generates control signals, and drives the various moving parts of the machine.
2.3. Machining execution

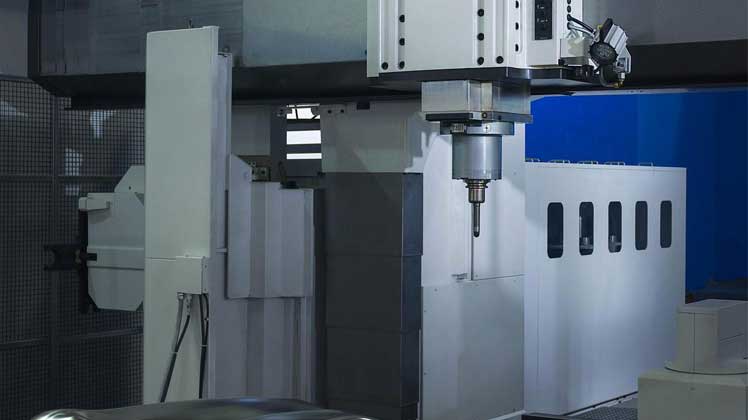

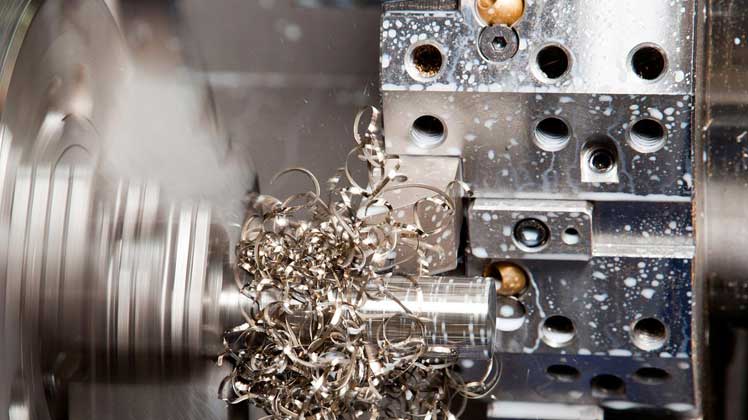

The CNC machine automatically plans and executes tool paths according to the CNC program instructions. The moving parts of the machine tool (e.g., spindle, table, etc.) move according to the predetermined trajectory under the control of the CNC system to complete the cutting, drilling, milling and other operations on the workpiece.
2.4. Detection and Adjustment
During the machining process, the CNC system will monitor the position of the tool and workpiece, cutting force and other parameters in real time, and make adjustments when necessary to ensure machining accuracy and quality. Some advanced CNC machine tools are also equipped with online measurement and feedback systems, which allow real-time detection and correction during machining.
3.Third, the main advantages of CNC machining
Compared with traditional manual machining, CNC machining has the following significant advantages:
3.1. High precision and consistency
CNC machining is capable of achieving micron-level machining accuracy, ensuring consistency from one part to the next. This is especially important for products that require high precision and consistency, such as aerospace components and medical devices.
3.2. High efficiency and automation
CNC machining can run continuously and automatically, dramatically increasing productivity. Especially in mass production, CNC machines can complete machining tasks unattended, reducing manual intervention.
3.3. Complex shape machining
CNC machining can easily complete complex surfaces and shaped structures, the traditional manual machining is difficult to achieve such complex processes, CNC machine tools can be multi-axis linkage processing, to achieve the three-dimensional space of any complex shape processing.
3.4. Flexible production
CNC machining has a high degree of flexibility, can quickly adjust the processing parameters and programs to adapt to different batches and varieties of production needs. This makes CNC machining is particularly suitable for modern manufacturing industry, multi-species, small batch production mode.
4. Fourth, the practical application of CNC machining
CNC machining in various industries are widely used, the following are a few typical examples of applications:
4.1. aerospace
Aerospace field on the parts of the precision and complexity of the requirements are extremely high, CNC machining through multi-axis linkage technology, can process complex surfaces and high-precision holes, to meet the stringent requirements of aviation components.
4.2. Automobile Manufacturing
CNC machining is used in automobile manufacturing for processing engine parts, body structure parts and molds. Through CNC machining, efficient mass production can be realized to ensure the quality and consistency of each part.
4.3. Medical Devices
Medical devices require a high degree of precision and surface finish, CNC machining can accurately machine complex medical device parts such as artificial joints, surgical instruments and implants to ensure high quality and reliability.
4.4. Mold and Die Manufacturing
CNC machining occupies an important position in mold manufacturing. Mold manufacturing requires high precision and complex surface shapes, CNC machine tools through precision machining, can ensure high quality molds, thereby improving product quality and productivity.
5. Fifth, the development trend of CNC processing
With the continuous progress of science and technology, CNC machining is being intelligent, networked and flexible direction. The future of CNC machining will be more artificial intelligence and Internet of Things technology, to achieve adaptive processing, autonomous decision-making and remote monitoring, to further improve processing efficiency and quality.
5.1. Intelligent
Through the introduction of artificial intelligence technology, CNC machining can realize automatic programming, real-time monitoring and fault diagnosis, and further enhance the intelligent level of machining.
5.2. Networking
Through the industrial Internet, CNC machine tools can realize remote monitoring and cooperative work, improving production efficiency and management level.
5.3. Flexibility
The future of CNC machining will pay more attention to flexible production, in order to adapt to the market demand for multi-species, small batch production.
6.Conclusion
CNC machining, as an important part of modern manufacturing technology, has been widely used in various industries for its high precision, high efficiency and flexibility. With the continuous progress of technology, CNC machining will continue to develop and promote the manufacturing industry in the direction of more intelligent, automated and efficient.
