CNC Plastic Machining Services for Custom Precision Parts

SzCrealink provides custom CNC plastic machining for prototypes, functional components, and low- to medium-volume production.
We machine engineering plastics to your drawings and specifications, with attention to dimensional accuracy, material properties, surface finish, and repeatability.
Whether you need a simple plastic housing, an insulating component, a precision bushing, or a complex machined part, our team can review your design and recommend a practical machining approach.
Send us your drawings or CAD files for a CNC plastic machining quote.
GET A Free QUOTE

CNC Machining for Engineering Plastics

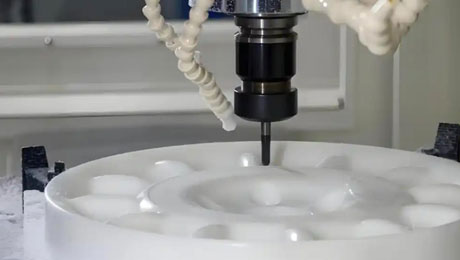

CNC plastic machining is a subtractive manufacturing process in which a solid plastic block or sheet is cut to the required shape using computer-controlled machining equipment.
Unlike injection molding, CNC machining does not require a mold. This makes it a practical option for prototypes, design verification, replacement parts, and production runs where tooling investment is not justified.
CNC plastic machining is particularly suitable when:
You need prototypes or small production runs
The part requires specific dimensions or tolerances
The design may still change during development
A custom geometry is difficult to produce with standard plastic processes
You need engineering plastics with specific mechanical, electrical, or chemical properties
For each project, material selection, part geometry, tolerances, quantity, and surface requirements all affect the machining process and final cost.

Our CNC Plastic Machining Capabilities

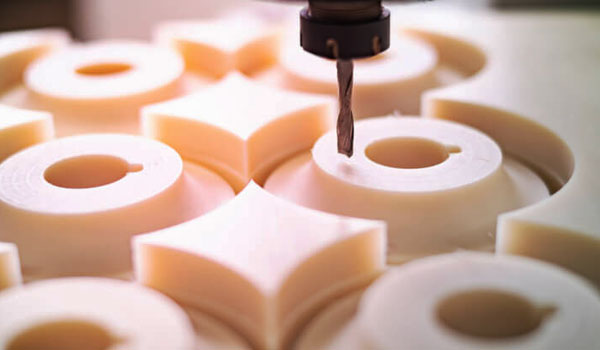

We machine plastic parts using 3-axis, 4-axis, and 5-axis CNC equipment, depending on the geometry and tolerance requirements of the part.
CNC Milling

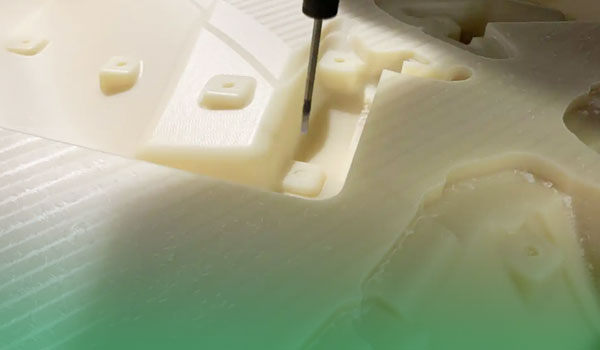

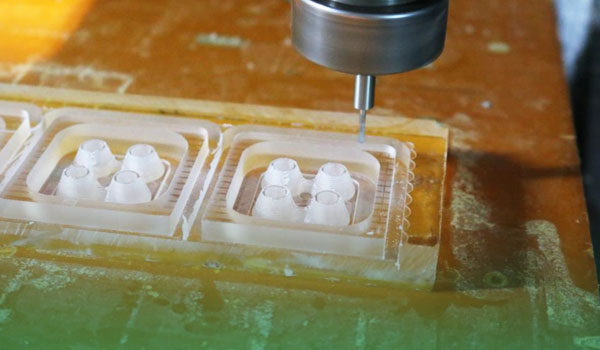

CNC milling is suitable for housings, brackets, plates, fixtures, covers, blocks, and complex 3D components. Multi-axis machining can help reduce setups and improve access to features on more complex parts.

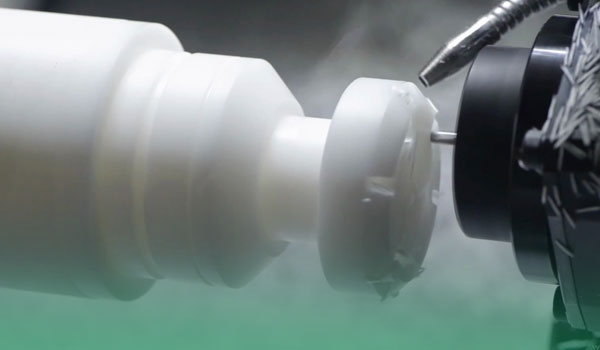

CNC Turning
For cylindrical plastic components, CNC turning can produce shafts, bushings, spacers, sleeves, and other round parts with consistent dimensions.
Drilling, Tapping & Threading
We can machine holes, threaded features, counterbores, countersinks, and other secondary features according to your drawings.
Complex Geometry
For parts with angled surfaces, pockets, contours, or multiple machining faces, we select the appropriate machining process and fixturing method to maintain dimensional consistency.
Prototype to Small-Batch Production
CNC plastic machining works well for one-off prototypes as well as small and medium production quantities. You can validate the design before committing to injection molding or other tooling-based processes.

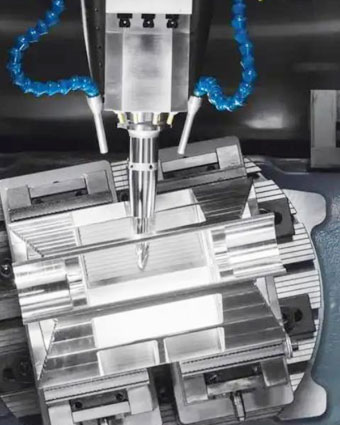

CNC Plastic Machining Capabilities 3-4-and-5-axis

3-axis, 4-axis, and 5-axis CNC machining services

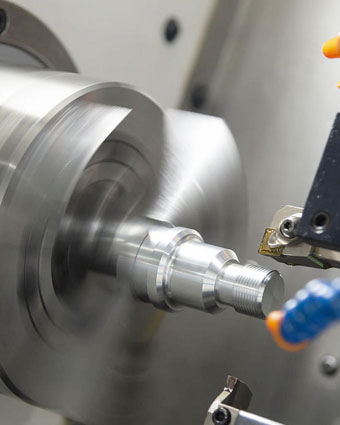

CNC Plastic Machining Capabilities CNC milling and turning

CNC milling and CNC turning for plastic parts

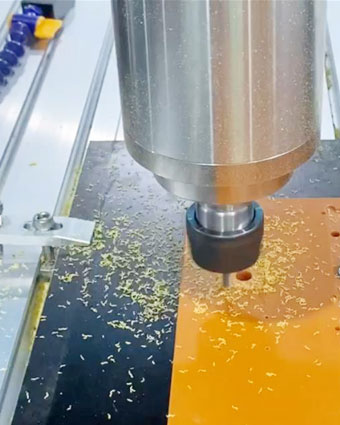

CNC Plastic Machining Capabilities Drilling tapping engraving and contour machining

Drilling, tapping, engraving, and contour machining

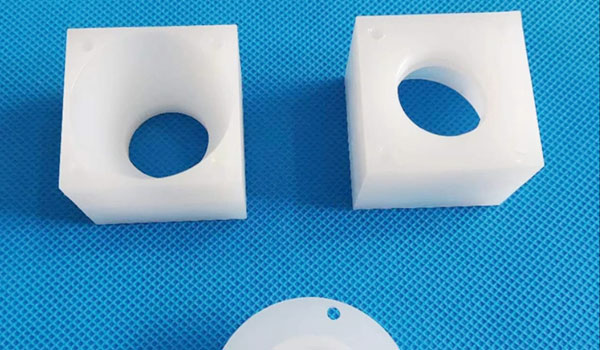

Plastic Materials We Machine

Different plastics behave differently during machining. Material choice can affect dimensional stability, surface finish, wear resistance, chemical resistance, strength, and overall part performance.
Common materials we machine include:
POM (Delrin) – low friction, good dimensional stability, suitable for gears, bushings, guides, and mechanical components
PA / Nylon – tough and wear-resistant, commonly used for functional mechanical parts
PC (Polycarbonate) – high impact resistance and available in transparent grades for suitable applications
ABS – easy to machine and commonly used for prototypes, housings, covers, and functional models
PMMA / Acrylic – available for transparent and appearance-focused components
PP (Polypropylene) – lightweight and resistant to many chemicals
PTFE – excellent chemical resistance and low friction for specific sealing and insulation applications
PEEK – high-performance engineering plastic used where higher temperature resistance, chemical resistance, and mechanical performance are required
Glass-filled plastics – selected when additional stiffness or strength is required
Material availability, grade, color, and certification requirements can vary by project. If you are unsure which material to use, send us your application requirements and drawing. We can help you compare suitable options.

Choosing the Right Plastic for Your Part

The best plastic is not necessarily the most expensive one.
When selecting a material, we normally consider:
Part function
Will the component carry a load, slide against another part, insulate electricity, or simply serve as a protective cover?
Dimensional requirements
Some plastics absorb moisture or respond more strongly to temperature changes, which can affect dimensional stability.
Operating environment
Temperature, chemicals, moisture, UV exposure, and wear can all influence material selection.
Surface and appearance
For visible components, transparency, color, texture, and surface finish may be important.
Quantity and cost
For prototypes and low-volume production, CNC machining can avoid the tooling investment required for injection molding.
If the material is specified on your drawing, we follow your requirement. If it is not specified, our engineers can discuss suitable alternatives based on the intended application.

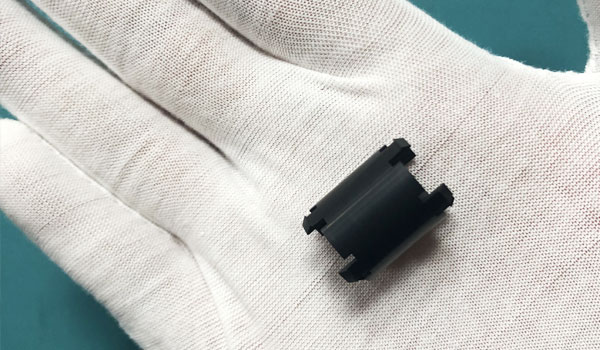

Parts We Commonly Machine

Our CNC plastic machining services can be used for a wide range of custom components, including:

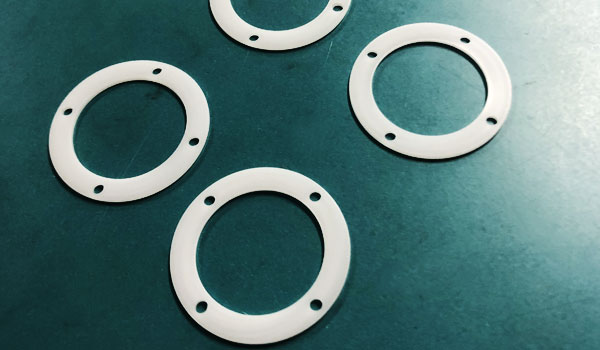

Plastic housings and enclosures
Covers and protective components
Brackets and mounting parts
Bushings and spacers

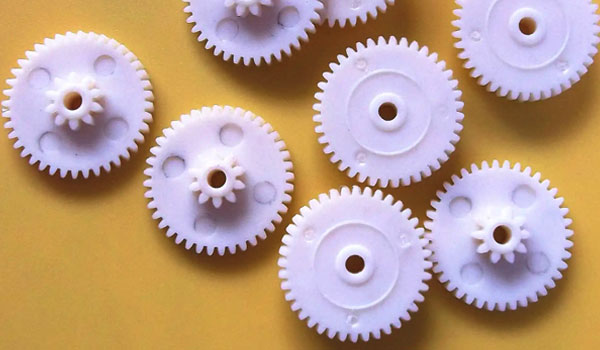

Gears and mechanical components
Guides and wear components
Electrical insulation parts
Laboratory and equipment components
Fixtures and tooling components
Transparent acrylic and polycarbonate parts
Custom prototype components
The final machining approach depends on the part geometry, material, tolerance, quantity, and surface requirements.

From Drawing to Finished Plastic Part

Our process is straightforward:
1. Send Your Drawings
Provide your 2D drawing, 3D CAD file, sample, or other available specifications. STEP, STP, IGES, and common CAD formats can be reviewed for quotation.
2. Engineering Review
We check the part geometry, material, tolerances, quantity, and manufacturing requirements. Where necessary, we may suggest practical changes to improve machinability or reduce unnecessary cost.
3. CNC Machining

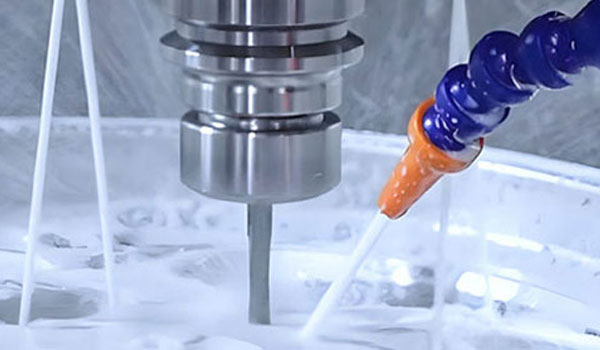

We select the appropriate machine, cutting tools, workholding method, and machining sequence according to the plastic material and part geometry.
4. Inspection

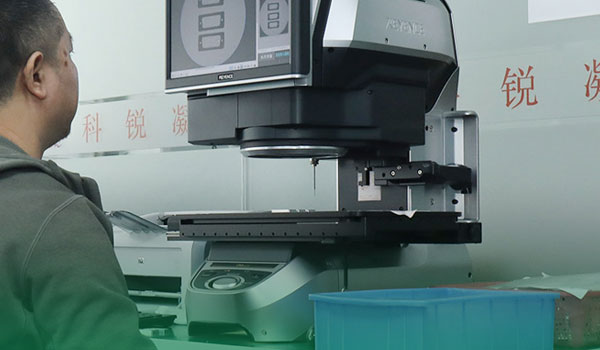

Critical dimensions are checked during and after machining using calibrated measuring equipment. Inspection requirements can be matched to your drawing and project needs.
5. Finishing & Delivery
After machining and inspection, parts can receive the required finishing or secondary processes before packing and shipment.

Precision and Quality Control

Plastic parts require careful process control because different materials can respond differently to cutting forces, heat, and clamping pressure.
We pay particular attention to:
Cutting conditions
Tool selection
Workholding and part deformation
Heat buildup during machining
Burr control
Dimensional inspection
Surface finish

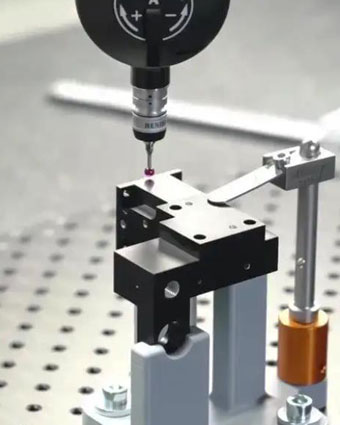

For critical dimensions, we use appropriate measuring equipment and inspection methods to verify the finished part against the drawing.
Our manufacturing system is supported by ISO 9001, ISO 13485, IATF 16949, and ISO 14001 certifications.
Inspection reports and material documentation can be provided when required by the project.

CNC Plastic Machining for Prototypes and Production

CNC machining is often a good choice when you need parts quickly without investing in injection molds.
For early-stage development, CNC machined prototypes allow engineers to check:
Fit and assembly
Mechanical function
Clearances
Appearance
Installation dimensions
Material behavior
Once the design is finalized and production quantities become significantly higher, injection molding may become more economical.
For this reason, many projects use CNC machining during development and move to a different production process after the design has been validated.

CNC Plastic Machining vs. Injection Molding

CNC Plastic Machining Injection Molding
No mold required Mold required
Suitable for prototypes and low-volume production Better suited to higher production volumes
Easy to modify the design Design changes may require mold modification
Shorter setup for new parts Higher initial tooling investment
Good for custom and complex machined parts Lower unit cost at suitable high volumes
The right process depends on your quantity, design, material, tolerances, and target cost. If you are unsure which process makes sense for your project, we can review the requirements before production.

Why Work With SzCrealink?

SzCrealink is a Shenzhen-based direct manufacturer with experience in precision CNC machining since 2007.

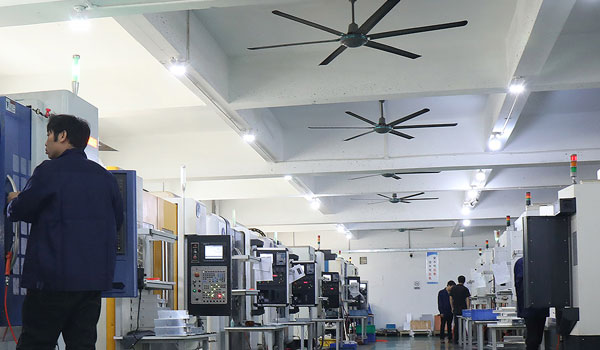

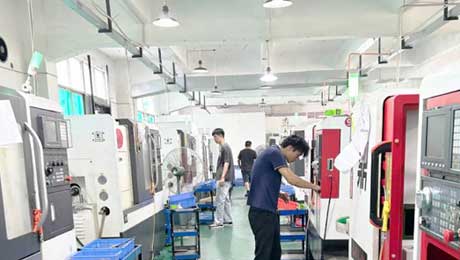

Our facility includes more than 50 CNC machines and over 2,000 m² of manufacturing space, supporting CNC machining, sheet metal fabrication, surface treatment, and assembly.
For CNC plastic machining projects, customers work directly with our manufacturing team rather than relying on a trading company to coordinate production.
We support:
Custom parts made from your drawings
Prototype and low-volume production
3-axis, 4-axis, and 5-axis CNC machining
CNC milling and turning
Engineering plastic materials
Dimensional inspection
Surface finishing and secondary processing
Global order fulfillment

Frequently Asked Questions

What plastics can be CNC machined?
Common CNC machining plastics include POM, Nylon, ABS, PC, PMMA, PP, PTFE, PEEK, and glass-filled engineering plastics. The suitable material depends on the application and required properties.
Can you make one prototype?
Yes. CNC machining does not require a production mold, so it can be used for single prototypes as well as small and medium production quantities.
How accurate can CNC plastic parts be?
Achievable tolerance depends on the plastic material, part size, geometry, feature location, and machining process. Critical tolerances should be reviewed from the drawing rather than applying one tolerance value to every feature.
Can you machine transparent plastic?
Yes. Materials such as PMMA/acrylic and suitable grades of polycarbonate can be CNC machined. Surface finishing may be required when optical or appearance requirements are important.
Can you provide material certificates or inspection reports?
Yes, when required. Please specify documentation requirements when requesting a quotation.
How do I get a CNC plastic machining quote?
Send us your 2D drawings or 3D CAD files, material specification, quantity, tolerances, surface finish requirements, and delivery requirements. Our team will review the project and provide pricing and lead-time information.

Get a CNC Plastic Machining Quote

Have a plastic part that needs to be machined?
Send us your CAD files or drawings and tell us the required material, quantity, and delivery target. We will review the design and provide a quotation based on your actual manufacturing requirements.
